24V Manual Bilge Drainage Pump – Rule 800

Rule 800 24V Manual Bilge Drainage Pump

This compact submersible 50LPM (800 GPH) 24V Manual Bilge Drainage Pump is mainly used as a bilge or bait pump but can be used as a water drainage pump where normal 240V power is not available.

The 24V Manual Bilge Drainage Pump is a totally submersible pump with water cooled, ignition protected motor, stainless steel shaft and snap-off strainer base is extremely efficient, draws low current and offers high capacity output in a very compact housing, to fit into the smallest available space.

As this is a Manual Rule Bilge Pump, it requires a Rule float switch to operate automatically.

• 800 US gallons per hour – 50 litres per minute (depending on the head)
• Compact – 95mm H x 61mm W
• Fully submersible
• Ignition protected – won’t create a spark
• 24 volt DC – 1.3 amp draw
• Hose outlet suits 20mm (3/4?) hose
• 24 volt 800 GPH 1.3 amp
• 3 year limited warranty

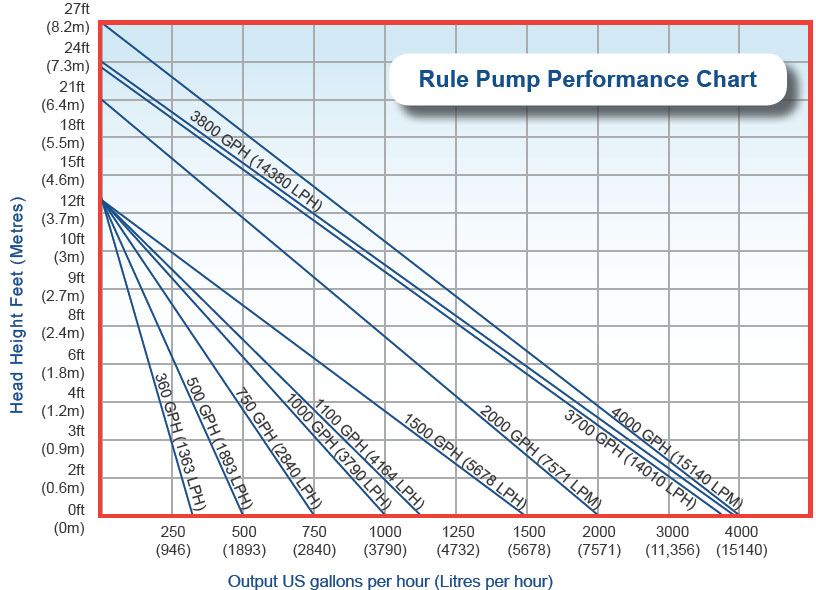

I have included a flow chart, however the output, water flow and pumping height will vary depending on battery charge and type of installation.
