30 litre per minute bore pumps are the FPS-2A range of 4″ Inch bore pumps which are available in Single 1 Phase 2-wire & 3-wire and Three 3 Phase.  They are suitable for 4 inch or larger bore casings.

2m3/h flow rating. 24LPM to 41LPM is the most efficient flow produced by the FPS2A range.  However, they are capable of flows from 7LPM to 43LPM. Also, capable of heads from 15m to 640m. (see flow chart below)

All the bore pumps below are powered by Franklin Electric corrosion-resistant 4″ submersible motors.

If you require any of the FPS2A models in Single 1 Phase 3W-PSC, please contact us.

Standard 1 Ph 3-wire and 3W-PSC models come standard with a starter box.

You will also receive a FREE Splice Kit with your purchase.

Free Shipping Australia wide.

More pump details and selection advise below the displayed products (at bottom of page).

Each FPS-2A model can produce more or less than 30LPM depending on the head that it is operating at.

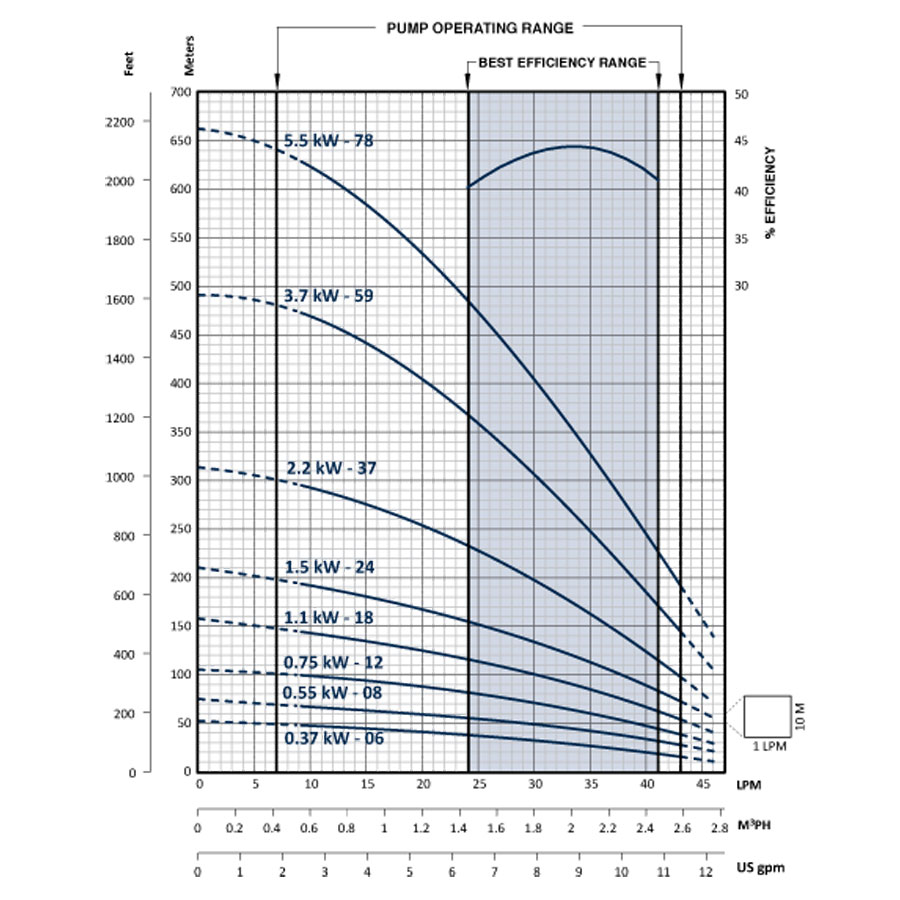

All the models on this page are capable of producing from 24LPM to 41LPM efficiently.  They can operate outside that range for short periods of time. See image below for “Pump Operating Range” and “Best Efficiency Range”.

The amount of water that you get depends on the head that the pump is operating at.

For example, the FPS-2A-06 (which is a 0.37kw / 0.5hp bore pump), will produce 30LPM when operating at a head of 30m.  This same pump will produce 40LPM if it is operating at a head of 20m. It will produce a lesser flow of 25LPM if operating at a head of 37m.

Bore Pump Selection Hints

Please remember that the ‘Head’ is not just the depth that the pump is set at down the bore casing.  To learn more on how to calculate the ‘head’, please go here: How to Calculate the ‘Total Head’.

To learn more about how to read the flow charts, please go here: How to understand the flow charts.

Franklin Electric FPS4400

The standard FPS 4400 4”submersible pump features the new TRI-SEAL floating stage system. This new stage system further improves efficiency and protects against wear when pumping abrasives like sand.

Features of the 30LPM range

• 300 series stainless steel hub floats with the impeller maintaining a positive seal
• Phenolic water provides downthrust protection
• Celcon®* impeller provides high efficiency performance and abrasion resistance
• Noryl®** diffuser and disc – proven abrasion resistant material
• Floating stage design allows impeller to float independently
• Removable, spring-loaded check value
• Maximum water temperature: 120° F/ 49° C
• Ceramic shaft sleeve and rubber discharge bearing protect shaft and eliminate sand wear
• Powered by Franklin Electric corrosion resistant 4” submersible motors
• Visit Franklin Electric’s website page for more details on the FPS 4400 4-Inch Bore Pumps
