6 Inch Motors

Home > Bore Pumps > Submersible Motors > 6 Inch Motors

6 Inch Franklin Electric Submersible Motors

Standard Water Well

304 Stainless Steel

316 Stainless Steel

STD WW Hi Temp 90c

316 SS Hi Temp 90c

304 SS Rewindable

316 SS Rewindable

904l SS Rewindable

Franklin Dol Motors

All the 6″ Motors displayed on the website are DOL 3 Lead motors.

6LYD (Wye-Delta) 6 Lead motors are also available for most models (except the rewindable) on request.

Franklin Standard Water Well 6" Motors

The Sand Fighter™ sealing system is exclusive to Franklin Electric. It utilizes an optimized mechanical seal with silicon-carbide seal faces, making the Sand Fighter is the perfect motor for abrasive applications. The Sand Fighter motor built for sandy well applications and is a standard 30 °C (86 °F) water well motor manufactured with the Sand Fighter sealing system as standard.

By installing the Franklin SubMonitor overload protection unit, the motor warranty extends to three years. The SubMonitor protection system guards the motor against overload, underload, excessive winding temperature and rapid cycling. The SubMonitor is available on this site under the category “BORE PUMP ACCESSORIES > MOTOR PROTECTION”.

For more information on these motors, please visit the Franklin Electric site here: http://www.franklin-electric.com.au/motors,-controls-protection/motors/6-inch-encapsulated.aspx

franklin electric 6 six inch motors
Franklin Electric 6 Inch Motors

Franklin 304 Stainless Steel 6" Motors

The data for the 304 SS 6” motor is the same as the standard water well motor, however the 304 Stainless steel shell is better quality. Only a few of the Standard Water Well models are available in 304SS.

Franklin 316 Stainless Steel 6" Motors

The data for the 316 SS 6” motor is the same as the standard water well motor, however the 316 Stainless steel shell provides better corrosion resistance for saltwater applications.

For more information on these motors, please visit the Franklin Electric site here: http://www.franklin-electric.com.au/motors,-controls-protection/motors/6-inch-encapsulated.aspx

Franklin Standard Water Well Hi Temp 90c

These 6-inch encapsulated motors have the Sand Fighter SiC seal system as standard.  Water lubricated thrust and radial bearings enable a maintenance free operation. A special diaphragm ensures pressure compensation inside the motor.

The motor is filled with a special FES92 fluid, providing frost protection down to -15 ºC storage temperature.
The High Temperature 90C 6” motor utilizes a new, premium encapsulation process and new water soluble coolant to allow continuous operation in water temperatures of up to 90ºC (provided minimum allowable rates of flow past the motor are maintained). This design is also capable of handling thrust loads 25% higher than a standard motor without using oil. Franklin’s Hi-Temp 90C is good for high temperature well applications.

For more information on these motors, please visit the Franklin Electric site here: http://www.franklin-electric.com.au/motors,-controls-protection/motors/6-inch-hi-temp-90c-encapsulated.aspx

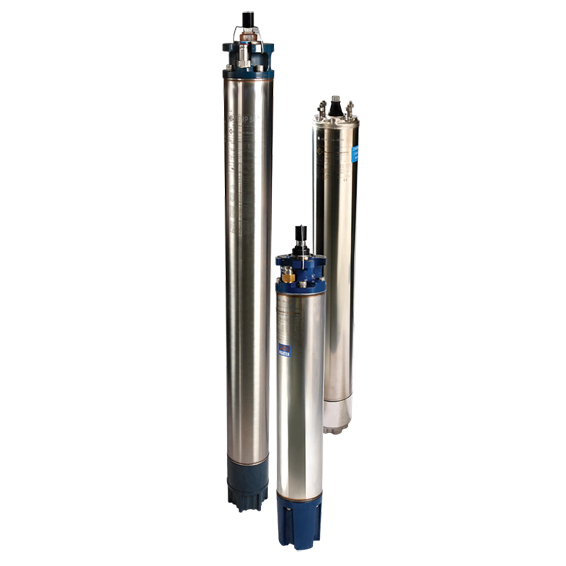

Franklin 316 Stainless Steel Hi Temp 90c 6" Motors

The data for the 316 SS 6” motor is the same as the standard water well Hi Temp 90C motor, however the 316 Stainless Steel has a special construction option for acid, low pH, and seawater applications. All 316 SS motors include a Subtrol-Plus heat sensor.

For more information on these motors, please visit the Franklin Electric site here: http://www.franklin-electric.com.au/motors,-controls-protection/motors/6-inch-hi-temp-90c-encapsulated.aspx

Franklin 304 Stainless Steel Rewindable 6" Motors

These 6“ rewindable motors are truly rewindable with removable winding covers. They are designed to operate in 6“ diameter or larger water wells. Water lubricated thrust and radial bearings enable a maintenance free operation. A special diaphragm ensures pressure compensation inside the motor. The motor is filled with a special FES93 fluid, providing frost protection down to -15ºC storage temperature.
The SAND FIGHTER™ SiC seal system is the standard option for applications in aggressive media, motors made of 304SS.

For more information on these motors, please visit the Franklin Electric site here: http://www.franklin-electric.com.au/motors,-controls-protection/motors/6-inch-rewindable.aspx

Franklin 316 Stainless Steel Rewindable 6" Motors

The data for the 316 SS 6” rewindable motor is the same as the standard water well rewindable motor, however the 316 Stainless Steel has a special construction option for saltwater applications.

Franklin 904l Stainless Steel Rewindable 6" Motors

The data for the 904LSS 6” rewindable motor is the same as the standard water well rewindable motor, however the 904L Stainless Steel has a special construction option for aggressive media, acid, low pH, and seawater applications.

SAE 904L grade stainless steel is a fully austenic low-carbon variety of stainless steel with additives of molybdenum and copper. Its high nickel and chromium content make it corrosion resistant in both oxidizing and reducing environments. The copper and molybdenum help to make it resistant to pitting as well as crevice corrosion. The nickel content makes it resistant to chloride SCC and the low proportion of carbon makes it resistant to intergranular corrosion. It is considered especially well-suited to handling sulfuric acid and phosphoric acid, though at high temperatures it may be subject to stress corrosion cracking.
