Electroflo solar-ready pumping solution
Solar Bore Pump Kits include the solar pump, motor and controller.
They can also be purchased with pole mount solar arrays.
Drive-Tech Mini
The Drive-Tech Mini maximises system efficiency through advanced MPPT control, ensuring optimal use of DC solar input power. Built-in diagnostics, protection features and a soft-start function help prevent water hammer and extend the life of connected equipment. The unit supports both AC induction and permanent magnet synchronous motors and is built with a robust IP66 rating to protect against dust, insects, weather and wildlife. As a variable frequency drive (VFD), it provides flexible control and is fully compatible with the UnyConnect mobile app for monitoring and adjustments.
Electroflo PD Pump
Purpose-designed for solar operation, the Electroflo PD Pump features reduced vibration and lower drive-shaft stress for smoother, more stable performance. A longer and wider seal line improves pump life, while an enhanced drive-shaft design boosts durability. Its complete stainless-steel body ensures long-term reliability in harsh water conditions. The pump’s advanced rotor and stator geometry results in lower start-up power requirements, increased daily water output and improved efficiencies, with operational capabilities reaching heads up to 220 m and flow rates between 10–40 l/m.
4” Encapsulated Permanent Magnet Motor
The 4″ encapsulated permanent magnet motor delivers high electrical efficiency for reduced running costs. It holds drinking-water approvals and performs reliably in water with elevated salinity. The Franklin StatorShield™ encapsulation system, pressure-equalising diaphragm and 4 kN thrust load capability support long service life. The motor operates within a wide temperature range and is rated up to 2.2 kW at 220V (100 Hz).
Together, these products provide a robust, efficient and dependable solar pumping solution for a wide range of applications.
For more product information, please go to the Franklin Electric website and view the Electroflo solar products
Click here for pricing

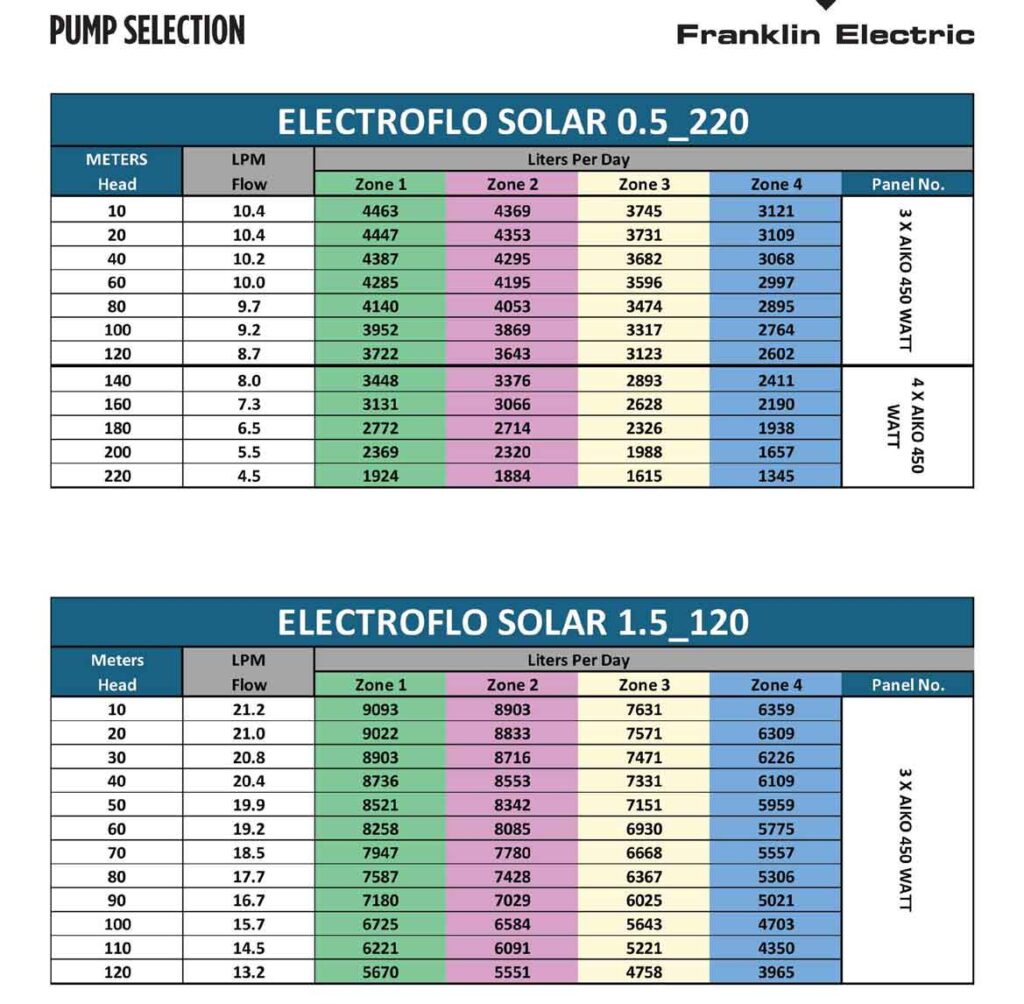

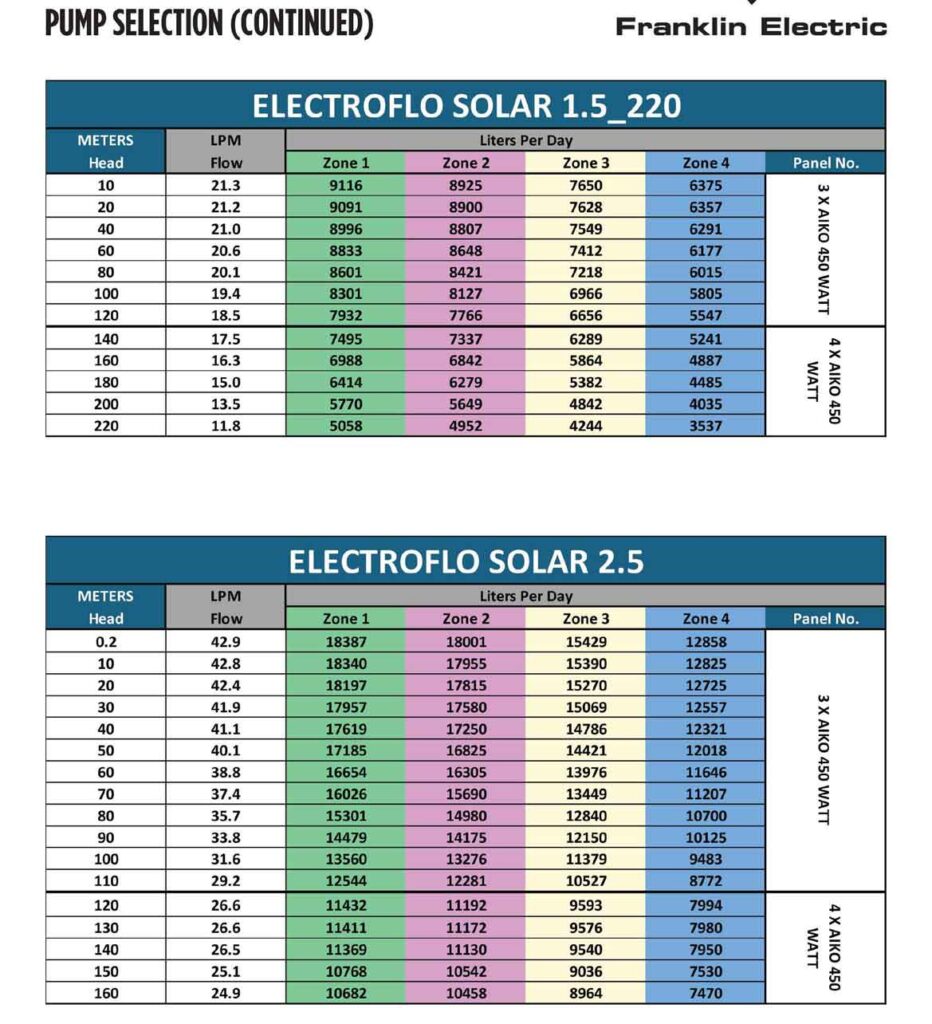

Electroflo PD pump ends
- 0.5EL220 Electroflo Helical Rotor Solar Pump End
- 1.5EL120 Electroflo Helical Rotor Solar Pump End
- 1.5EL220 Electroflo Helical Rotor Solar Pump End
- 2.5EL120 Electroflo Helical Rotor Solar Pump End
For heads up to 220m. Flow rates vary from 10LPM up to 40LPM depending on the operating head and pump model.

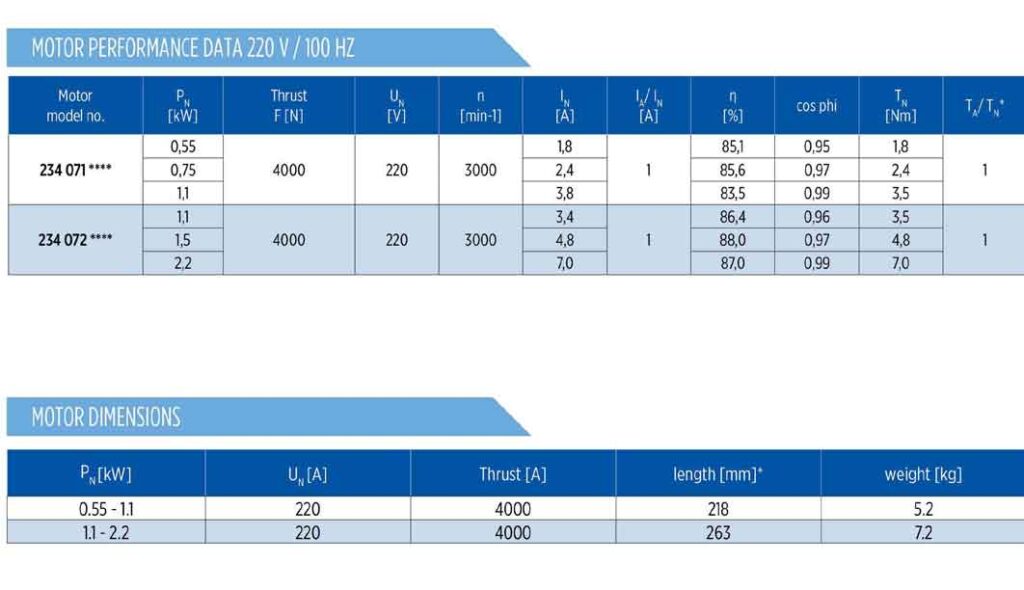

4 Inch Encapsulated Permanent Magnet Motor
- Ratings up to 2.2kw.
- Voltage 220V (100Hz)
- High efficiency electrical design for low operation costs
- Drinking water approvals
- Suitable for use in water with increased salinity
- StatorShield – Franklin encapsulation system
- Pressure-equalizing diaphragm
- Thrust load: 4kN
- Maximum storage temperature -150C – *SOOC
- Nominal ambient temperature: 301 with 0.08 m/cooling flow

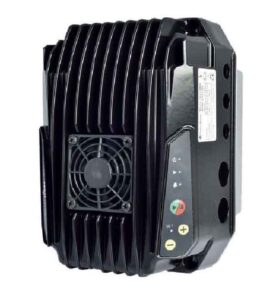

Drive Tech Mini Solar Controller
- MPPT control maximises efficiency of input power powered bv DC solar array
- Built-in diagnostics and protection features
- Soft-start feature prevents water hammer and increases svstem life
- Controlof AC induction and permanent magnet synchronous motors
- Robust IP66 minimises impact on wildlife, insects, dust and weather
- Variable frequency drives (VFD)
- Compatible with UnyConnect app
NEED HELP Selecting a suitable model?

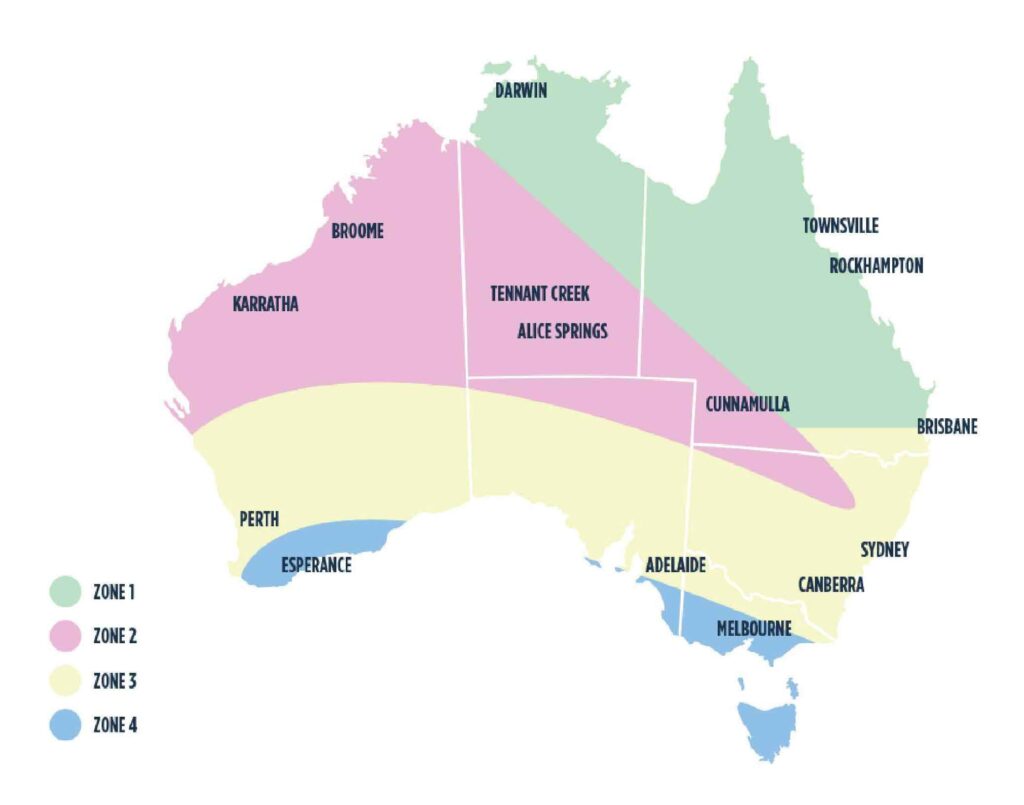

The map displays the zones which indicate how many sunlight hours. Choose the zone that you live in.
For pump sizing, contact your local Franklin Sales Manager
