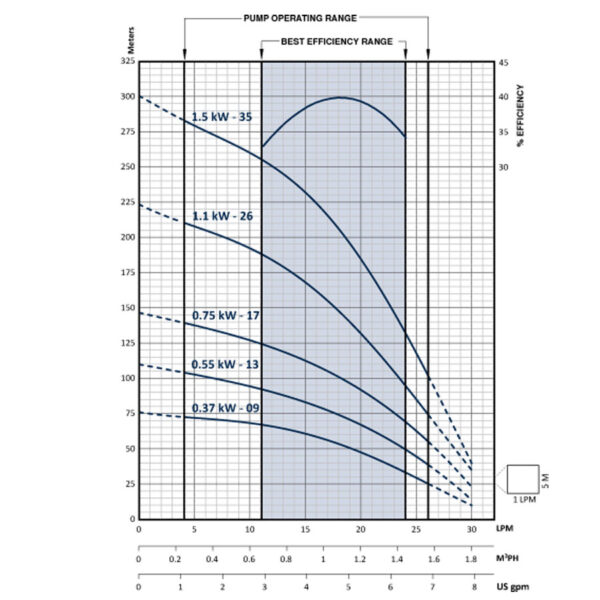

1hp/0.75kw – Single 1 Phase 2-wire. Max Flow = 24LPM @ 68m head. Min flow = 11LPM @ 125m head
Assembly includes pump & motor
4400 Tri-Seal 4-Inch Bore Pump and Motor Kit.
1 m³/h flow ratings
18 liters per min / 0.3 liters per second @ 100m head
This FPS-1A-17TS has a 0.75kw/1hp 2-wire motor.
The 2-wire 1 phase motor doesn’t require a starter box.
Receive a FREE 4″ Splice Kit with every Franklin Bore Pump and Motor Combination.
There are other accessories that you will need to install your bore pump which include bore cap, drop cable, support cable, riser pipe, pressure gauge, etc. These are listed below
Please be sure that your pump and accessory selection is correct before you purchase as the onus is on you. This is why I have included suggestions below with links, to ensure you select the correct size accessories for this model pump.
Options to purchase with your kit to suit this pump
This model has a 1 1/4 (32mm) discharge thread, so if you are using 32mm pipe diameter then a 1.25″ Bore Cap would be recommended.
A shroud adapter is only needed if you are installing a 4″ pump down 6″ or larger casing.
If using 32mm pipe diameter then a 32 x 100mm (1 1/4″ riser) PVC Shroud Adaptor would be recommended.
The info below is a guide only, you must check with your electrician on cable size.
1 Phase Cable (2-wire/3 core) – 1.5mm sq cable up to 60m, 2.5mm sq cable up to 110m, 4mm sq cable up to 180m
Always check with your electrician. He will do volt drop calculations to meet site requirements to comply with AS.
Flexible Riser Pipe
– Series 100 is for depths up to 100.The sizes are 32 mm and 50 mm internal diameter.
– Series 200 is for depths up to 250m. The sizes range from 40mm to 200mm internal diameter.
– As well as the Couplings, ties, joiners and installation roller.
Single 1 Phase Motor Protection
If you purchase a single phase 2-wire or 3-wire kit, then you will need a Pumptec as your motor protection device.
3 Year Warranty
0.75 / 1
|Rated Flow (LPM)||
2-wire 1 Phase
