$341.00
Good for systems that use pressure switches, level switches or other pilot devices.

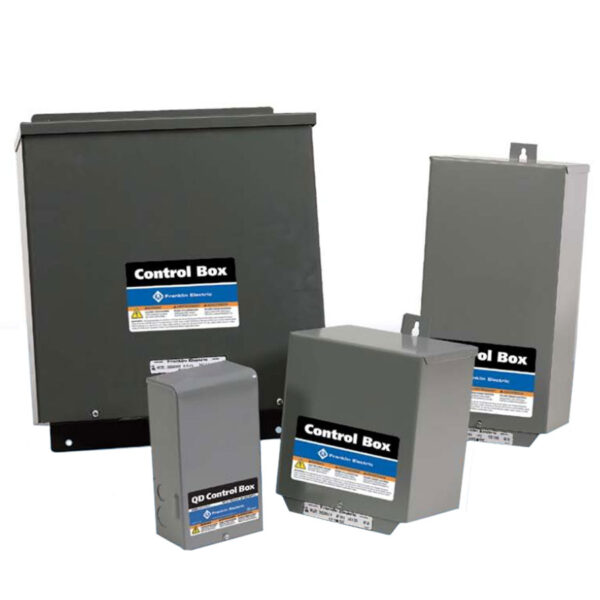

Franklin Electric 1 Ph 3-wire 1.5kW Control Box.
Franklin Electric submersible control boxes are designed and optimized specifically for Franklin submersible motors. Controls are an integral part of a submersible motor power system and our rigorous component testing ensures the toughest products in the industry. Franklin controls provide long-lasting, reliable operation for best system performance.
Applications
• Standard-These control boxes are designed for use with Franklin 3-wire single-phase submersible motors from 1.1 to 3.7 kW. Recommended for water systems that use standard/heavy-duty pressure switches, level switches or other pilot devices.
Basic Features
• Heavy Duty Box-Type Terminals
• External Access to Overload Resets
• Multi-size Knockouts
• User-friendly Connection Diagrams
• Easy Access to Grounding Lugs
Weight | 3.2 kg |
---|---|
Dimensions | 20.6 × 15.9 × 28.6 cm |
Brand | Franklin Electric |
hp | 2 |
kw | 1.5 |
volts | 230 |
power-type | Single 1 Phase |
terminals | 6 |
order-number | 2823618119 |
Warranty-period | 2 Years |
