Low Level Automatic Puddle Sucker Pump

The Reefe RPP automatic low level pump is suitable for removing clean water without abrasive particles from flat surfaces.

The submersible puddle sucker pumps can draw down to extremely low water levels of 90mm above ground level, making them ideal for almost complete drainage. The maximum emersion depth is 5m.

With maximum drainage, it is very handy for pool or tank emptying, draining flooded cellars, stormwater and areas where standard drainage pumps cannot efficiently drain.

With the ability to drain water to a level of 90 millimeters above ground level. They are suitable for use in domestic flooding emergencies where a small area must be drained to the lowest possible level.

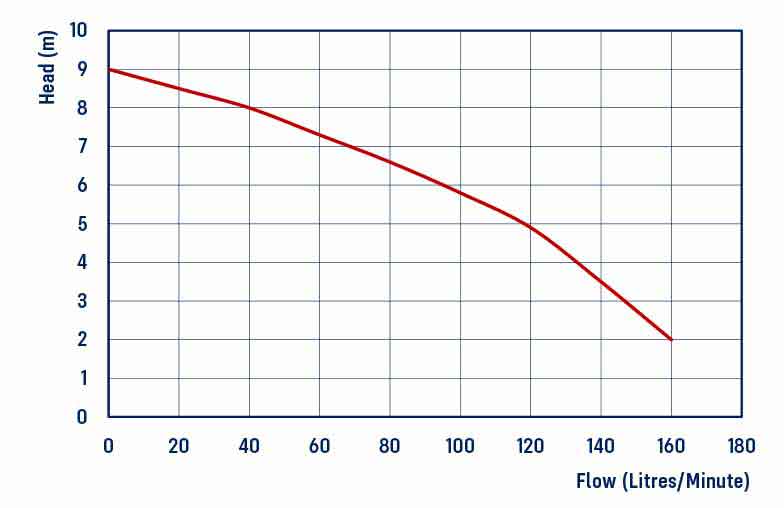

The lightweight 5.8kg pump can be easily lowered into flooded areas. The puddle sucker drainage pump is able to produce flows of up to 160 litres per minute, with a head of up to 9 metres.

Model Number = RPP160A
Rated Flow = 93LPM @ 6m head
Max Flow = 160LPM
Max Head = 9m
Outlet = 32mm
Pump Dimensions L 200 x W 200mm x H 282
Pump Weight = 5.4kg
Amps = 1.7
Soft Solids = 2mm
Warranty = 2 Year

The REEFE Low Level Puddle Sucker Pump is for clean water use only.

A submersible draining pump for emptying or removing water from flooded areas like:

• Cellars
• Basements
• Car Parks
• Manholes
• Pits
• Puddles
• Water Catching Trays
• Tank emptying
• Pool Emptying
• any application where maximum drainage is required

The Low-Level Drainage Pump also known as a Puddle Sucker Sump Pump comes fitted with 10 meters of cable for easy connection to power supply.

The Puddle Sucker is ideal for draining water from flat surfaces, as it will drain water down to a level of 90mm.

Features:

• Durable Stainless Steel Casing
• Drainage to 90mm
• Compact Top Discharge Design Reduces Space for easy installation in confined spaces and small pits
• Water Cooled Double Cased design allows pumps run safely when only partially submerged
• Every model undergoes hydrostatic testing for leakage from the casing and mechanical seals
• Thermal Overload Protection
• Max Immersion Depth 5m
• Max Liquid Temperature 50˚C

Construction:

Grade 304 Stainless Steel Pump Body

• Grade 304 Stainless Steel Impeller
• 32mm (11/4”) Outlet
• Single mechanical seal in oil bath with NBR Spring Type Oil Seal
• Mechanical Seal: Carbon /Graphite – Ceramic / NBR / 304 Y
• Bearing: Double Sealed with Steel Cage
• 2 Pole 50Hz 2850rpm Motor
• 8uF Capacitor Inbuilt
• Thermal Overload Protection
• Insulation Class F (155˚C)
• Ingress Protection IP68
• 10m Power Cable
