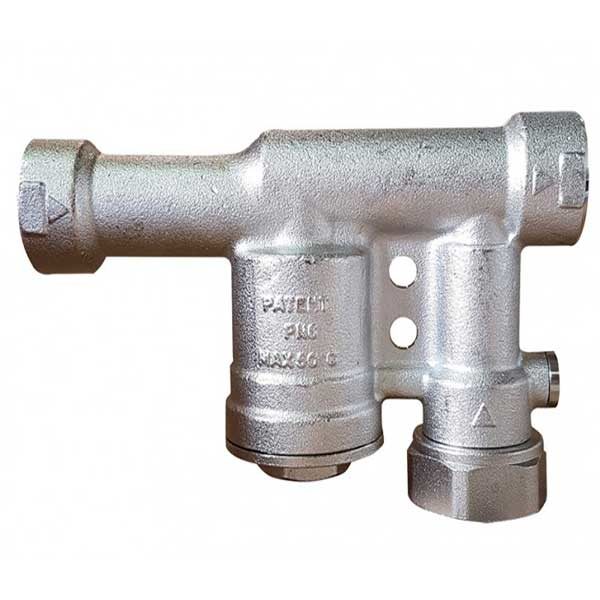

RainPro Rain-Main Valve RM1600

$399.00

Rain to Mains Switchover Valve – Fit to any pressure pump

Description

Rain-Main Water Diversion Valve

RM1600 RainPro Rain-Main Valve is a fully automatic adjustable mechanical rainwater/mains water changeover device.  The design is for pressure pump supply systems to harvest rainwater for Granny Flats, Cabins and household applications with automatic mains backup.  It is suitable for most domestic applications.

The RainPro Rain-Main Valve is for use with most surface and submersible pressure pumps.  It is best to be used with pumps with an auto-restart function. This valve is suitable for use with the REEFE® PRJ External Pumps such as the PRJ052, PRJ062 and the PRJ095 Pressure Pumps.  Also suitable to use with the  RPS Submersible series pumps such as the RPS036 and RPS050 Submersible Pressure Pumps.

It is ideal for rainwater harvesting. The valve switches from mains to tank whenever tank water is available and automatically defaults to mains in the event of a power or pump failure.

  • Maximum Mains Pressure = 500kPa
  • Maximum Pump Pressure = 500kPa
  • Maximum flow Rate = 35+LPM
  • Inlet and Outlet = 20mm / 25mm

RM1600 RainPro Rain-Main Valve Applications

  • Domestic Rain to Mains systems
  • Whole house supply up to 4 bathrooms
  • Small Irrigation Systems
  • Small Toilet Blocks
  • Granny Flats and Cabins



FEATURES & BENEFITS

  • Simple and easy to install
  • Adjustable to compensate for varied mains pressure
  • Valve does not require maintenance
  • No electrical components so no electrical consumption
  • No standby electrical consumption
  •  Suitable for use with REEFE® PRJ External and RPS Submersible series pumps
  • Can be mounted directly onto the pump in any orientation or position
  • Can be mounted in any position
  • Built in dual check valve for back flow prevention on mains and rainwater connections
  • 5 Years Warranty
  • Durable design, built to last. Solid brass construction



CONSTRUCTION

  • No electrical components – 100% hydraulically operated
  • Solid brass
