This solar bore pump kit consists of a 0.55kw / 0.75hp 25 litre per minute SolarPAK and a 3 panel (high power) array.

This system / kit is good for 40 to 70m heads with an approx flow of 11,300 to 13,800 litres per day.

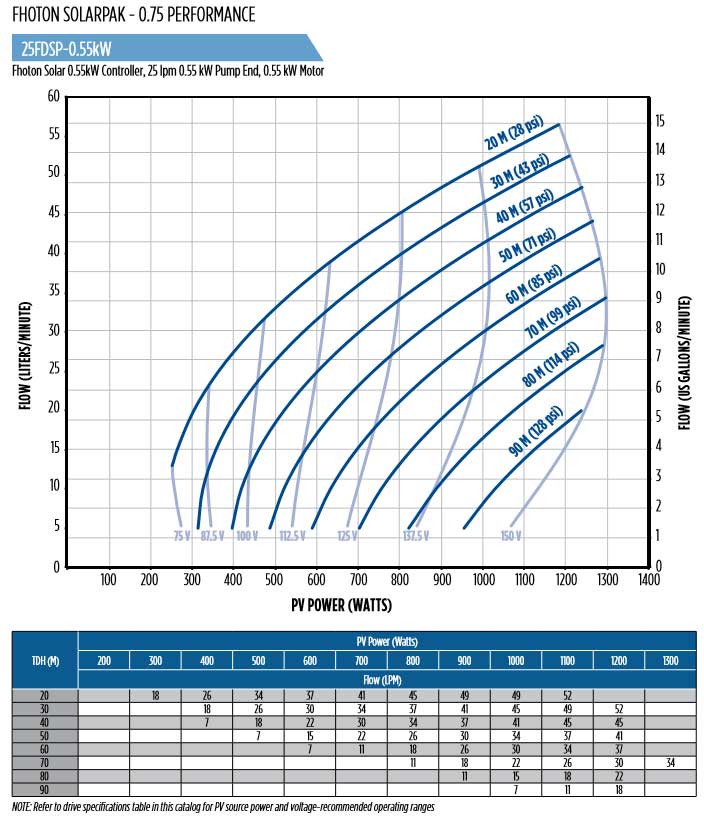

The pump is rated at 25LPM.  This flow will vary depending on the application.  For example:

1. If you were operating this system / kit at a 40m head and your location provided an average of 6.76 solar hours per day (Batchelor NT), then this system / kit would produce 13,800 litres per day.
2. If you were operating this system / kit at a 50m head and your location provided an average of 6.76 solar hours per day (Batchelor NT), then this system / kit would produce 12,500 litres per day.
3. If you were operating this system / kit at a 60m head and your location provided an average of 6.76 solar hours per day (Batchelor NT), then this system / kit would produce 11,300 litres per day.

In the examples above, the 3-wire (4 core) electrical drop cable size needed would be 4mm squared if you required 40m to 60m.

This cable is the only cable that doesn’t come with the kit and needs to be ordered separately.  You can order it by the meter here and it can be added to your order.

The Fhoton Solar Calculator will provide you with all the information that you need.  Just input the ‘Head’, ‘Volume of Water Needed’, ‘Panel Details’ (Wmpp 350W, Vmpp 57.9V, Voc 70.3V) and your ‘Location’.  If you want to know what size cable then enter it into the ‘WIRE – Length’ field.

See an example below.

The Fhoton Solar Bore Pump Kits are supplied with Fhoton SolarPAKS and a Solar Array Kit.  See Below.

Fhoton SolarPAKS

• 1 x Solar Pump
• 1 x Solar Motor
• 1 x Fhoton Controller
• 1 x WiFi Chip
• 100, 150 & 270 LPM pumps are supplied with 2? BSPMF external Check Valve.
• All threads are BSPP on Pump Ends, Check Valves & Flow Switches.
• The Fhoton Controllers are outdoor rated to IP66

Solar Array Kit

• Solar Panels: Wmpp 350W, Vmpp 57.9V, Voc 70.3V.  mpp=max. panel power
• DC Isolator 1000v 20 amp-IP56 enclosure
• 3 Phase 16 amp AC Circuit Breaker
• MC4 lead & connectors x 10 metres (panel to breaker)
• MC4 lead & connectors x 3 metres
• Shutdown Procedure Sticker
