Solar Transfer Pump 1 Inch

Solar Transfer Pump 1 Inch has a 25mm / 1″ Outlet.

The REEFE Solar Transfer Pumps have been developed as the demand for energy wise products increases. The range offers direct pumping via solar panels and has little to no ongoing operational cost. These Solar transfer pumps open a range of pumping possibilities. Used anywhere on the farm or homestead where power isn’t available. Observe RPM, Current Draw, Volts, and Watts being produced in real time.

Off Grid Transfer Pump

Where there is sun you can move water.  See the pump details below for the Volts DC, Input Voltage or Watts required to power the pump.
We DO sell these solar transfer pumps with a optional solar panel pole mount kit.
If you are supplying your own panels, please ensure the voltage, etc is adequate or the pump will not work.

Solar Powered Transfer Pump Details

Model: STP550
Volts DC: 48
Optimal Input Voltage: 60V – 90V
Watts: 550
Solar Panels Required: 2 x 330W
Open Circuit Voltage VOC: <100V
Rated Flow: 100LPM
Rated Head: 10m
Maximum Flow: 116LPM
Maximum Head: 24
Inlet / Outlet Size: 25mm / 1″
Weight: 13kg
Dimensions: L 312mm x W 182mm x H 233mm
Warranty: 2 Years

Centrifugal Solar Transfer Pump Features

• Compact controller with display for easy observation of system data
• Intervention free operation will automatically start and stop when sufficient UV light is available
• Built in loss prime for protecting your investment
• Easy to handle roll frame with shroud to protect your controller from the elements
• Automatic restart function
• Over voltage and under voltage protection

Construction of Solar Powered Transfer Pump

• Cast iron pump casing and motor bracket
• Brass impeller, prime and drain plugs
• Carbon ceramic mechanical seal
• Powder coated steel roll frame
• User friendly display for operational information

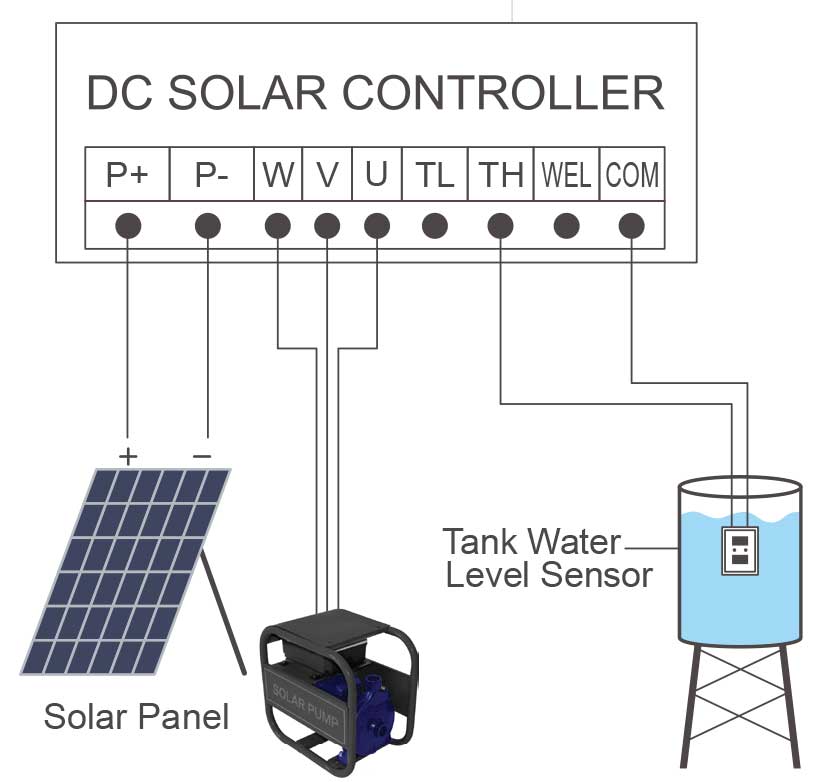

• Sensor input for tank fill or tank empty operation
• Automatic restart function

Applications for Off Grid Transfer Pump

• Water transfer
• Tank filling
• Irrigation
• Dam aeration
• Algae and mosquito suppression
