Easily pump out residue particles of ice, fish scales and Fish-Box or Livebait tank contents
The Jabsco 12VDC Self Priming Macerator Pump is great for emptying fish box and live bait tanks due to its self-priming capabilities and also it’s grinding properties.
If the livebait tank is mounted into the floor of the vessel, below the waterline or only partially above the waterline the Jabsco Macerator pump has the characteristics that lend themselves to this application. The bait residue particles of ice, fish scales and anything else that could potentially be found in the Fish-Box will be easily passed by the Jabsco Macerator Pump, and the self priming capabilities are perfect for common fish box installations.

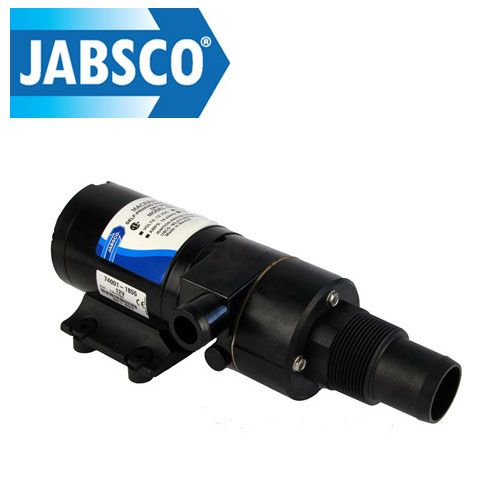

The 12VDC Self Priming Macerator Pump with Run Dry Protection includes a patented run-dry protection device, heavy duty corrosion resistant triple sealed motor and a powerful 4 blade stainless steel chopper to further reduce the possibility of clogging. Includes new upgraded stainless steel motor / body bolts.
Flow rate of 46 litres per minute empties a 120 litre holding tank in only 3 minutes. Heavy duty motor discharges up to 1,000 litres in one operation.
Inlet: 1 1/2″ male thread and 38mm hose
Outlet: 25mm 1″ hose barbed
Head Capacity and Flow Rates
47Liters @ 0m head – 14 Amps
44Liters @ 1.5m head – 14.5 Amps
40Liters @ 3m head – 15 Amps
34Liters @ 4.5m head – 16 Amps
28Liters @ 6m head – 16.5 Amps
Flow rates and amperage will vary slightly depending on the pump loading.
Grinding Capabilities – Stainless Steel Cutter capable of grinding waste down to a particle size of 1/8
” (3mm) max.
Capable of passing waste, toilet tissue, fish scales or bait residue. Not designed to pass rags, kitchen towels, tampons, wet wipes or sanitary napkins.
Voltage = 12 VDC
Amp Draw = 16 Amps
Fuse Size = 20 Amps
