30hp/22kw 6 Inch Motor – Max Flow = 283LPM @ 220m head. Min Flow = 166LPM @ 435m head
This model has a 6 Inch pump end with a 6 Inch motor.

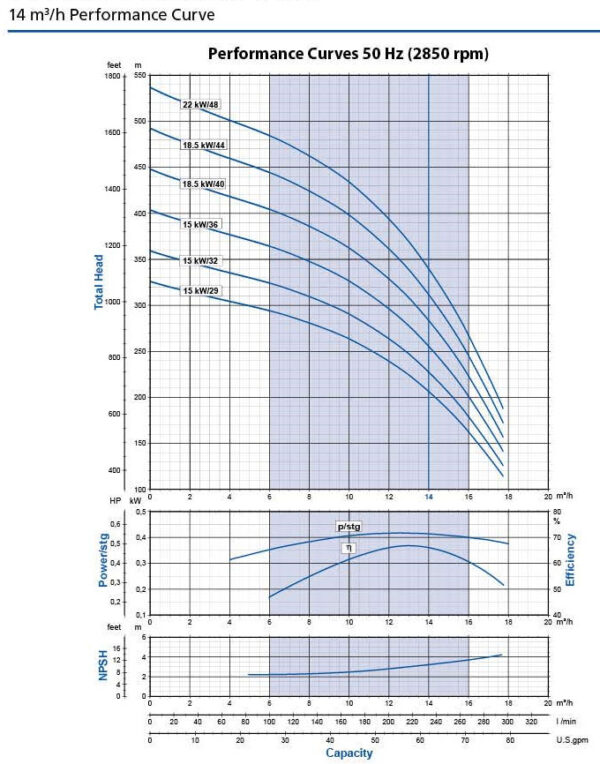

14m³/h flow ratings
233 liters per min / 3.8 liters per second @ 340m head
The 14SR-48 has a 6″ 22kw/30hp 3 phase motor.
Receive a FREE 6″ Splice Kit with every Franklin Bore Pump and Motor Combination.
There are other accessories that you will need to install your bore pump which include bore cap, drop cable, support cable, riser pipe, pressure gauge, etc. The bore pump accessories are available on the website.
Please be sure that your pump and accessory selection is correct before you purchase.
You must check with your electrician on cable size.
Always check with your electrician. He will do volt drop calculations to meet site requirements to comply with AS.
Three 3 Phase Motor Protection
If you purchase a 3 Three phase kit, then you will need a Submonitor as your motor protection device.
2 Year PMA warranty.
3 Year Warranty when you purchase a Pump and Motor Assembly with a Submonitor.
