Automatic Submersible Rainwater Pump

Automatic submersible rainwater pump – Multistage with integrated pressure control, run-dry protection, automatic restart function and leak detection function. The longer base keeps the pump inlet out of the sludge and debris that builds up at the bottom of the rainwater tank.

Safe for drinking water to AS/NZS4020 standard.

Model Number = RPS036F

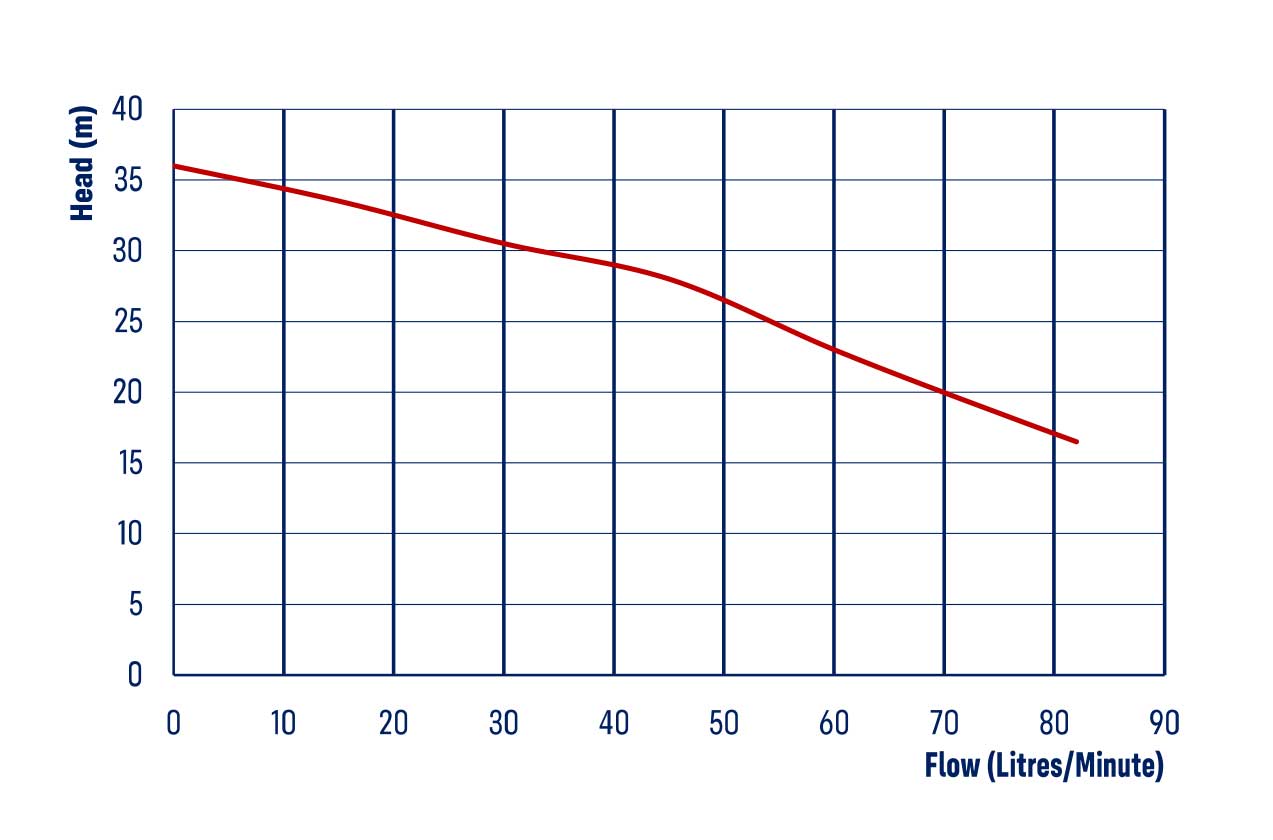

Rated Flow = 40LPM @ 29m head
Max Flow = 100LPM
Max Head = 36m
Inlet / Outlet = 25mm / 1″
Number of Taps = 4 to 6
Cable length = 10m
Dimensions = 125mm diameter x 870mm high
Warranty = 2 Years

Works in Rain to Mains backup systems.
All the integrated features makes for less parts which allow for easy installations. The 10m cable allows for easy connection to power supply.

Applications for the Submersible Water Pressure Pump

• Clean Water & Potable Water Transfer
• Household & Drinking Water Supply
• Rainwater Tanks
• Rain to Mains Backup Systems
• Industrial Cleaning
• Commercial Laundries

Features and Benefits

• Automatic start and stop
• Integrated Pressure Controller with 220kPA / 2.2 Bar cut-in
• Integrated run-dry protection
• Leak detection function
• Integrated check valve
• Compact design
• Water-cooled motor
• Corrosion resistant
• Thermal overload protection
  Base keeps inlet out of sludge on the bottom of the rainwater tank
• Max water temp is 40 degrees C
• Certified AS/NZS4020 for use with potable water
• Electrical safety approval to AS/NZS60335.2.41

Pump Construction

• Gr 304 Stainless Steel Outer Casing
• PPO Impeller
• AISI 304 Stainless Steel shaft
• PPO Diffuser
• Plastic pump base and discharge body
• Double mechanical seal, silicon carbide and carbon/ceramic
• Ingress protection IP68
• Insulation class B
