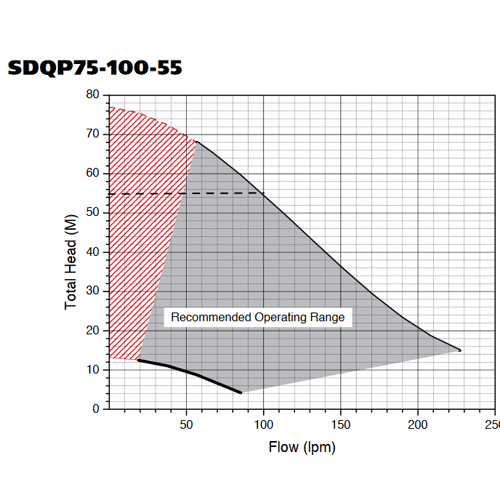

100LPM @ 55m head – Variable Speed Bore Pump Kit
Use a Constant Pressure Bore System when you need to pump water directly from the bore to the house or/and irrigation system.
The pump speed adjusts to the amount of taps that are turned on. Subdrive controllers are a complete bore pump kit which provide constant pressure by continually monitoring and adjusting the pump speed to meet water demands.
The Subdrive 1100 Connect System is a variable frequency drive constant pressure system.
SubDrive 1100 Connect comprises of a Pump, Motor, Drive, Pressure tank and Sensor all in one quick and easy package. SubDrive also eliminates pressure fluctuations during long running applications such as reticulation / irrigation systems and other domestic and industrial uses.
All in one easy and quick package to get you pumping quickly!
Features and Benefits
Constant water pressure with a wide range of settings (172 to 550 kPa)
Soft start feature prevents water hammer and increases motor life
Works with small pressure tanks or with larger tanks already in place
Smart Reset® technology allows well recovery before restarting the pump
Single-phase input power with three-phase motor performance
Excellent radio frequency interference shielding
